the best tipper trucks and tipper semitrailers manufacturer in China

water truck manufacturer in China

concrete mixer truck manufacturer in China

water fire trucks

water fire trucks

flat bed container semitrailers

Chang'an pavement high pressure jetting vehicle

wrecker tow trucks in China

fecal suction trucks

fuel tank truck

sewage vacuum suction truck

blasting equipment transport truck

LED outdoor screen vehicle

bulk cement carrier from Chengli

Dongfeng dalishen10cbm concrete mixer truck

Dongfeng refrigerated van trucks exported to TOGO

special truck : special trucks from Chengli Special Automobile Co....

special truck : special trucks from Chengli Special Automobile Co....: Chengli Special Automobile Co., Ltd is a famous specialied supplier and manufacturer of trucks for Municipal &environmental constructio...

special truck : Dongfeng tianjin water sprinkler truck for sales

special truck : Dongfeng tianjin water sprinkler truck for sales: Dongfeng tianjin 6*4 water sprinkler truck for sales. Dongfeng tianjin 6*4 water truck with pesticide spraying manufactured by Chengli Spe...

My Edited Video-SINO TRUK garbage compactor

10 units of fire trucks exported to Southeast Asia

10 units of dongfeng jingka double rows fire fighting trucks exported to South Asia.

These 10 units of dongfeng jingka double rows fire fighting trucks are manufactured by Chengli Special Automobile Co., Ltd. Look at the pictures ,the fire trucks are in line to be inspected, ready for leaving.

Dongfeng Jjnka Double rows fire truck

fire trucks manufacturer in China

Fire trucks is also called fire engine, fire pumper, fire appratus, fire fighting vehicles, rescue fire truck, tender fire truck, water tank fire truck, foam fire truck, water-foam fire truck, foam-dry powder fire truck, dry powder fire truck, fire hydrant  truck, etc.

Chengli Special Automobile Co., Ltd. is the leading manufacturer of fire truck, fire engine, fire fighting vehicle, etc. And the brands of the fire trucks are current famous ones, such as Dongfeng, SINO TRUK HOWO, STEYR, ISUZU, SHACMAN, NORTH BENZ, FOTON, CHANG'AN, JAC, etc. With many years' experience in manufacturing and selling, Chengli Special Automobile Co., Ltd. could manufacture and sell 500 gallon to 5000 gallon fire pumper, 2000L to 22000L fire engine, 0.5cbm-22cbm fire fighting truck, foam fire truck water tanker tender water-foam fire vehicle dry powder fire engine rescue vehicle, etc.

And our high quality and competitive price fire trucks have been exported to so many countries, such as Sudan, Libya, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Rwanda, Guinea, Sierra Leone, Ivory Coast, Togo, Benin, Niger, Nigeria, Cameroon, Gabon, Botswana, Democratic Republic of Congo, Zambia, Angola, Mozambique, Botswana, Namibia, Maurtius, Mongolia, Kazakhstan, Uzbekistan, Tajikistan, Kyrgystan, Turkmenistan, Afghanistan, Saudi Arabia, Philippines, Indonesia, Korea, Malaysia, Brunei, Thailand, Vietnam, Kampuchea, Laos, Burma, Mexico, Maldvies, Venezuela, Guyana, Columbia, Ecuador, Peru, Brail, Bolivia, Chile, Uruguay, etc.

Email: specialtruck01@gmail.com
Mob.: 86 13329899995
Skype: truck0011
QQ: 504873236

Dongfeng tianjin water sprinkler truck for sales

Dongfeng tianjin 6*4 water sprinkler truck for sales.

Dongfeng tianjin 6*4 water truck with pesticide spraying manufactured by Chengli Special Automobile Co., Ltd with multipurpose functions, one is for carrying water, the other is for water sprinkling,then for Choose the suitable pesticide truck mounted atomizing machine, for killing pesticide of the farm, greening, etc. More information, please feel free to contact with us.

Email: specialtruck01@gmail.com
skype: truck0011
Mob.: 86 13329899995

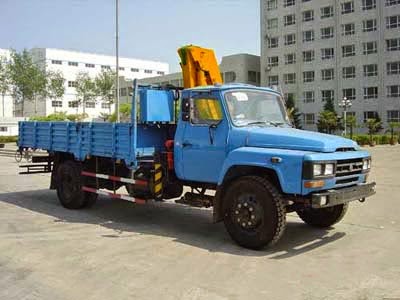

CHENGLI TRUCK MOUNTED CRANE

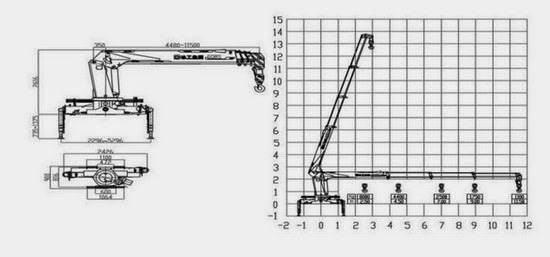

CHENGLI TRUCK MOUNTED CRANE parameters (telescopic crane)

Product name	Product model	Operation radius(m)	Lifting height(m)	Working dimension(m)	Circling angle(°)	Remark
2.5ton 2 section crane arm	SQ2.5SA1	5.38	7.3	3.1	360(full circle)
3.5ton 2 section crane arm	SQ3.5SA1	5.38	7.3	3.1	360(full circle)
3.5ton 3 section crane	SQ3.5SA2	7.6	9.5	3.1	360(full circle)
4 ton 3 section crane arm	SQ4SA2	7.6	9.5	5.1	360(full circle)
5ton 3  section crane arm	SQ5SA2	8	10	5.1	360(full circle)
6.3ton 3 section crane arm	SQ6.3SA2	9.2	11.5	5.1	360(full circle)
6.3ton 4 section crane arm	SQ6.3SA3	12.0	14	5.1	360(full circle)
7ton 3 section crane arm	SQ7SA2	9	10.9	5.4	360(full circle)
7ton 4 section crane arm	SQ7SA3	12.3	14.3	5.4	360(full circle)
8ton 4 section crane arm	SQ8SA3	12.5	14.5	5.4	360(full circle)
9ton 4 section crane arm	SQ9SA3	13.8	15.8	5.4	360(full circle)
10ton 3 section crane arm	SQ10SA2	9.5	11.5	5.9	360(full circle)
10ton 4 section crane arm	SQ10SA3	12.25	14.3	5.9	360(full circle)
12ton 3 section crane arm	SQ12SA2	12	14	5.9	360(full circle)
12ton 4 section crane arm	SQ12SA3	15.4	17	5.9	360(full circle)
13ton 4 section crane arm	SQ13SA3	15.5	17	5.9	360(full circle)
16ton 4 section crane arm	SQ16SA3	15	17	7.2	360(full circle)
20ton 4 section crane arm	SQ20SA3	15	17	7.2	360(full circle)

Note:

1， S means telescopic crane, A3 means telescopic 3 section without the fixed crane.

2，the crane device, chosen to install rear outriggers are solid rear outrigger, manual movable, hydraulic rear outriggers; the front outriggers of 16ton and 20ton crane arm are two section telescopic, the dimension is 7.2m; double trunk hydraulic outriggers; above 10ton crane arms with radiator, etc.

3, the operating type, the common standard operation; above 6.3ton crane arm with pedestal double sides operation; above 12ton crane arm chosen operating at the upright post; below 5ton crane arms without limit level alarm but with working lamp, etc.

CHENGLI TRUCK MOUNTED CRANE parameters (telescopic crane)

CHENGLI TRUCK MOUNTED CRANE parameters (telescopic crane)

Chengli Special Automobile Co., Ltd. is one the leading manufacturer of truck mounted crane, crane truck, cargo truck with crane, hydraulic truck  crane, derrick  cargo truck, boom  crane truck, dump truck with crane, etc. With many years’ experience in manufacturing and selling, Chengli Special Automobile Co., Ltd. could offer Dongfeng brand, XCMG brand, FOTON brand, ISUZU brand, FAW brand, JAC Brand, JMC brand, truck mounted cranes. And the crane arms can adopt XCMG, SANY, SHIMEI, CHENGLIWEI, etc. The hydraulic crane truck factory of Chengli Special Automobile Co., Ltd. could offer 2ton-5ton small truck crane, 5ton-10ton medium truck mounted crane, 10ton-20ton large boom truck crane, heave duty crane truck, knuckle boom truck crane hydraulic crane mobile crane, etc.

And our cargo truck cranes are famous for the high quality and competitive price, having been exported to so many countries, such as Sudan, Libya, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Rwanda, Guinea, Sierra Leone, Ivory Coast, Togo, Benin, Niger, Nigeria, Cameroon, Gabon, Botswana, Democratic Republic of Congo, Zambia, Angola, Mozambique, Botswana, Namibia, Maurtius, Mongolia, Kazakhstan, Uzbekistan, Tajikistan, Kyrgystan, Turkmenistan, Afghanistan, Saudi Arabia, Philippines, Indonesia, Korea, Malaysia, Brunei, Thailand, Vietnam, Kampuchea, Laos, Burma, Mexico, Maldvies, Venezuela, Guyana, Columbia, Ecuador, Peru, Brail, Bolivia, Chile, Uruguay, etc.

Product name	Product model	Operation radius(m)	Lifting height(m)	Working dimension(m)	Circling angle(°)	Remark
2.5ton 2 section crane arm	SQ2.5SA1	5.38	7.3	3.1	360(full circle)
3.5ton 2 section crane arm	SQ3.5SA1	5.38	7.3	3.1	360(full circle)
3.5ton 3 section crane	SQ3.5SA2	7.6	9.5	3.1	360(full circle)
4 ton 3 section crane arm	SQ4SA2	7.6	9.5	5.1	360(full circle)
5ton 3  section crane arm	SQ5SA2	8	10	5.1	360(full circle)
6.3ton 3 section crane arm	SQ6.3SA2	9.2	11.5	5.1	360(full circle)
6.3ton 4 section crane arm	SQ6.3SA3	12.0	14	5.1	360(full circle)
7ton 3 section crane arm	SQ7SA2	9	10.9	5.4	360(full circle)
7ton 4 section crane arm	SQ7SA3	12.3	14.3	5.4	360(full circle)
8ton 4 section crane arm	SQ8SA3	12.5	14.5	5.4	360(full circle)
9ton 4 section crane arm	SQ9SA3	13.8	15.8	5.4	360(full circle)
10ton 3 section crane arm	SQ10SA2	9.5	11.5	5.9	360(full circle)
10ton 4 section crane arm	SQ10SA3	12.25	14.3	5.9	360(full circle)
12ton 3 section crane arm	SQ12SA2	12	14	5.9	360(full circle)
12ton 4 section crane arm	SQ12SA3	15.4	17	5.9	360(full circle)
13ton 4 section crane arm	SQ13SA3	15.5	17	5.9	360(full circle)
16ton 4 section crane arm	SQ16SA3	15	17	7.2	360(full circle)
20ton 4 section crane arm	SQ20SA3	15	17	7.2	360(full circle)

Note:

1， S means telescopic crane, A3 means telescopic 3 section without the fixed crane.

2，the crane device, chosen to install rear outriggers are solid rear outrigger, manual movable, hydraulic rear outriggers; the front outriggers of 16ton and 20ton crane arm are two section telescopic, the dimension is 7.2m; double trunk hydraulic outriggers; above 10ton crane arms with radiator, etc.

3, the operating type, the common standard operation; above 6.3ton crane arm with pedestal double sides operation; above 12ton crane arm chosen operating at the upright post; below 5ton crane arms without limit level alarm but with working lamp, etc.
