CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc.
The volume of the compactor garbage van is 12m3, adopting high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Driver cab color: upon request; wastes van color: upon request.
More information, please feel free to contact with Ms. Anita.
Website: www.clwspecialtrucks.com
Whatsapp/Wechat/Mob.: +86 13329899995
Email: specialtruck01@gmail.com; truck0011@163.com
Skype: truck0011
QQ: 504873236
More pictures of Dongfeng 4*2 RHD 190hp diesel 12m3 compression garbage truck manufactured by Chengli Special Automobile Co., Ltd. as below.
 |

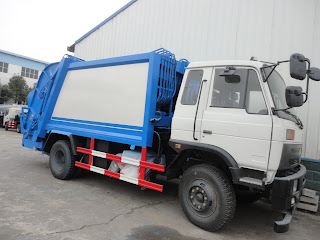

| CLW brand 12m3 compacted garbage truck for sale |
 |
| simple drawing pictures of CLW Brand compacted garbage truck for sale |
 |
| Customized 12m3 190hp wastes collecting vehicle for sale |
|
1
|
Product name
|
Dongfeng 4*2 LHD 12m3 garbage compactor truck （CLW5140ZYST3）
|
|
2
|
Truck chassis model
|
EQ1141
|
|
3
|
Overall dimension(L*W*H)
|
8380*2500*3320
|
|
4
|
Total mass(kgs)
|
14490
|
|
5
|
Curb mass(kgs)
|
9295
|
|
6
|
Rated mass(kgs)
|
5000
|
|
7
|
Volume
|
12m3
|
|
8
|
Real loading capacity
|
About 10tons
|
|
9
|
Max speed
|
90kw/h
|
|
10
|
Wheelbase
|
4500
|
|
11
|
Axle nos.
|
2
|
|
12
|
Driver cab
|
Dongfeng 4*2 single row driver cab with 3
seats with power steering and without air conditioner. Air conditioner is
selective
|
|
13
|
Approach/departure angle(°)
|
25/14
|
|
14
|
Front/rear suspension (mm)
|
1250/2630
|
|
15
|
Front/rear tread(mm)
|
1940/1860
|
|
16
|
Tire specification
|
10.00-20*6
|
|
17
|
Spring
|
8/10+8
|
|
18
|
Engine model
|
B190 33
|
|
19
|
Rated power
|
140KW/190hp
|
|
20
|
Displacement(ml)
|
5900ml
|
|
21
|
Fuel type
|
Diesel
|
|
22
|
Emission standard
|
Euro 3
|
|
23
|
Gearbox
|
8 speed gearbox, manual
|
|
24
|
Front/rear axle
|
5tons/10tons
|
|
25
|
Color
|
Different color upon request
|
|
26
|
Wastes van
|
Solid arc-shape box body of strength beam
and steel plate welded
|
|
27
|
Wastes van material
|
High quality China standard light duty
steel
|
|
28
|
Operation way
|
PLC control way
|
|
29
|
Loading and discharging way
|
Rear overturning mechanism
|
|
30
|
Compacted way
|
Bi-directional compression
|
|
31
|
Wastes compacting density
|
≥0.8tons/m3
|
|
32
|
One working circle time for loading and
discharging
|
≤30s
|
