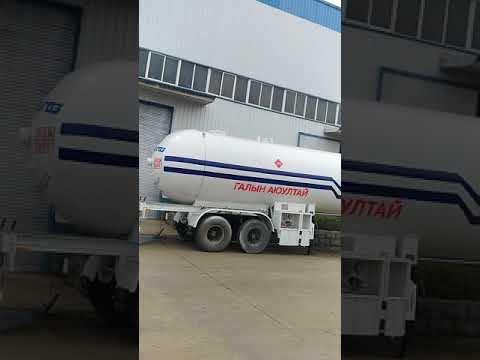

One unit of double axles 40m3 bulk propane gas tank semitrailer for overseas clients is finished.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd. could manufacture and sell surface/underground lpg gas storage tank, lpg gas tank semitrailer, lpg gas delivery truck, skid mounted lpg gas refilling station, etc.
More information, please feel free to contact with Ms. Anita.
Website: www.clwspecialtrucks.com.
Whatsapp/Wechat/Mob.: +86 13329899995
Email: truck0011@163.com; specialtruck01@gmail.com
Skype: truck0011
main technical parameters of 40000L bulk lpg gas trailer main parameters
| Loading medium | LPG gas | Medium characteristic | flammable and combustible | Safety valve | 1*DN100 | |
| Curb mass (kg) | 13415 | Tanker | Designed pressure(Mpa) | 1.61MPa | Designed standard GB150-2011<<pressure vessels>> GB/T19905-2005 <<Liquefied Gas Tank Car>> | |
| Loading mass(kg) | 17010 | Filling ratio(kg/cbm) | 420 | |||
| Max total mass (kg) | 30425 | Tanker material | Q345R | |||
| Wheelbase(mm) | 6720+1320 | Tanker designed thickness(mm) | 10.62 | |||
| Front/rear suspension(mm) | -/1500 | Head designed thickness(mm) | 10.59 | |||
| Overall dimension(L*W*H)(mm) | 11324*2500*3730 | Tanker body dimension(L*W*H)(mm) | 2200*12*11054 | Chengli Special Automobile Co., Ltd. | ||
40.5cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA double axles, 8+1 sets 12.00-20 tubeless tyres, JOST 28ton outrigger, JOST 50# traction pin, fire extinguisher bottles, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 8 sets12.00 tubeless tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottles, steel flippers, with ABS, etc.
The LPG tanker semi-trailer manufactured by Chengli Special Automobile Co., Ltd. is line with the GB150-1998《steel pressure vessel》, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>. We can also manufacture ASME standard lpg gas trailer, lpg gas tank, lpg gas truck, skid lpg gas filling plant, etc. And we can design and produce lpg gas pressure vessels customized.
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.
